Smol Community Builds
This page is dedicated to builds that anyone can reproduce.
Builds that are not open-source or lack sufficient documentation to be replicated are not listed here.
Table Of Contents
- Stacked Community Builds
- Non Stacked Community Builds
- 🚫 Not Recommended For New Tracker Builds
- Contribution
Stacked Community Builds
In stacked designs, the IMU sits on top of the board. This makes the tracker smaller and easier to build.
| Image | Name | Author | Link | USB | Battery | Strap Width | Dock | Dongle |
|---|---|---|---|---|---|---|---|---|
|

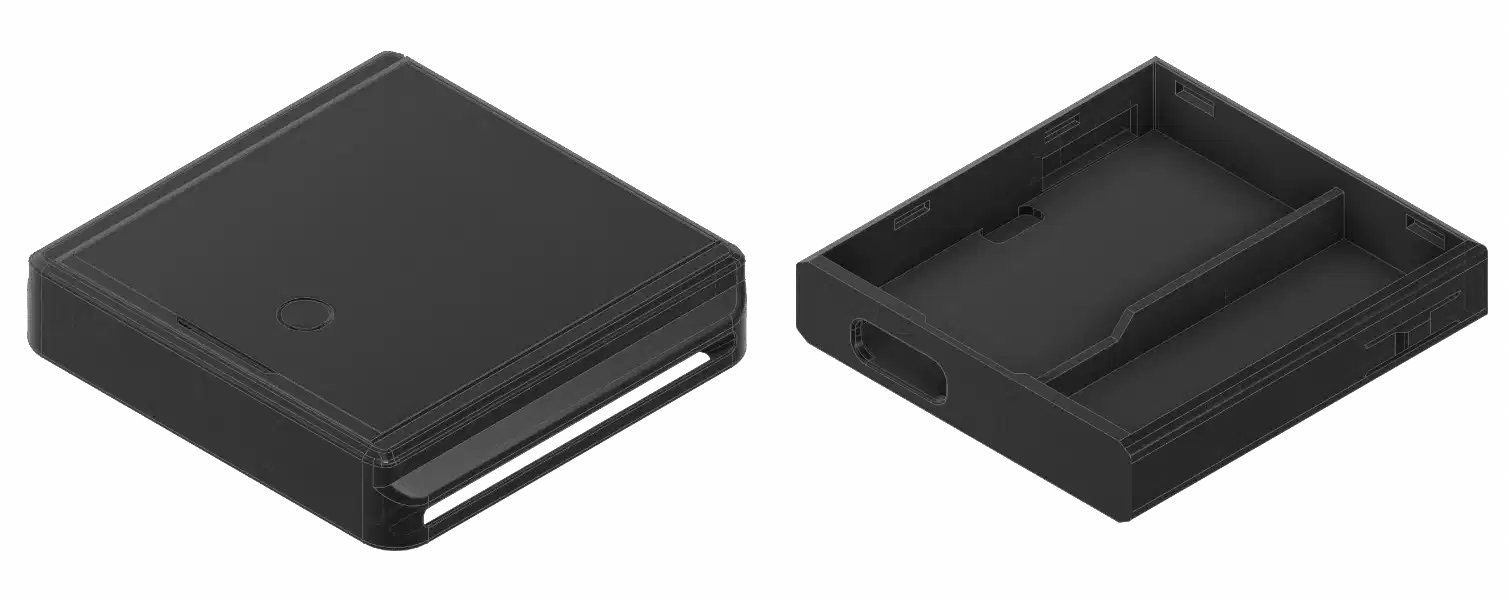

Gremlin | ManicQuinn | GitHub | ✅ |
110 mAh
401230 Battery
|
30 mm | ✖️ | ✖️ |
|

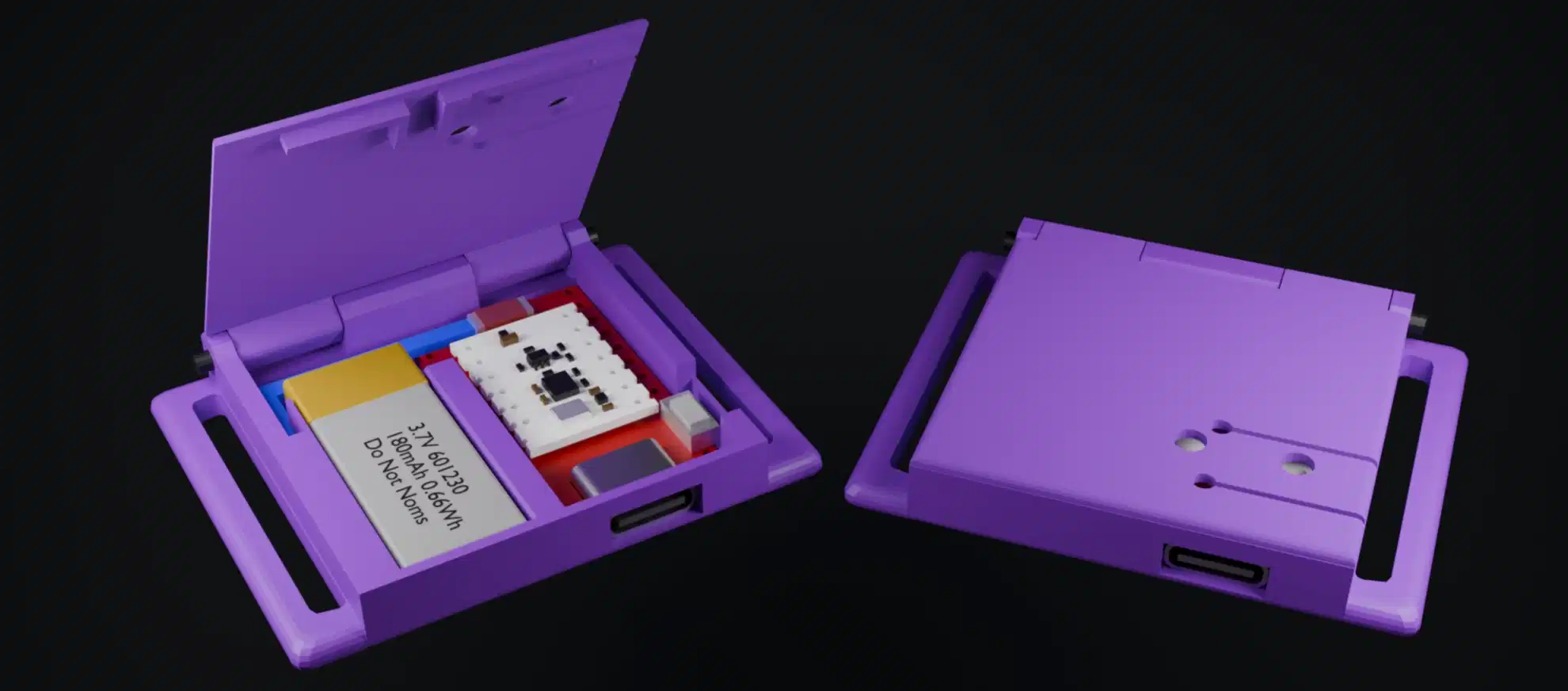

Smol Panini Case | TigsterCox | Github | ✅ |
180 mAh
601230 Battery
|
30 mm | ✖️ | ✖️ |
|
Ibis Trackers | brisfknibis | Github - Stacked | ✅ |
120 mAh
401230 Battery
|
30 mm | ✅ | ✖️ |
|

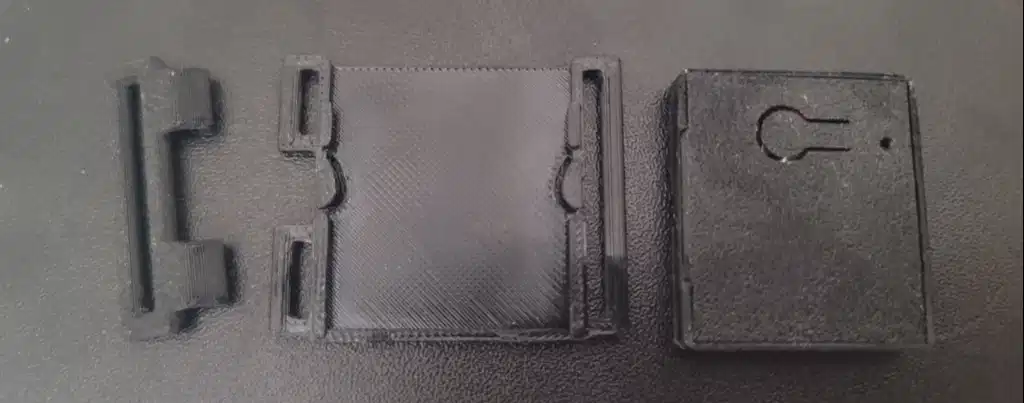

Stacked SmolSlime | LyallUlric | Thingiverse | ✅ |
100 mAh
401030 Battery
|
30 mm | ✖️ | ✅ |
|
SmolSlimeSMOL | ICantMakeThings | Thingiverse | ✅ |
500 mAh
402035 Battery
|
25mm | ✖️ | ✖️ |
|

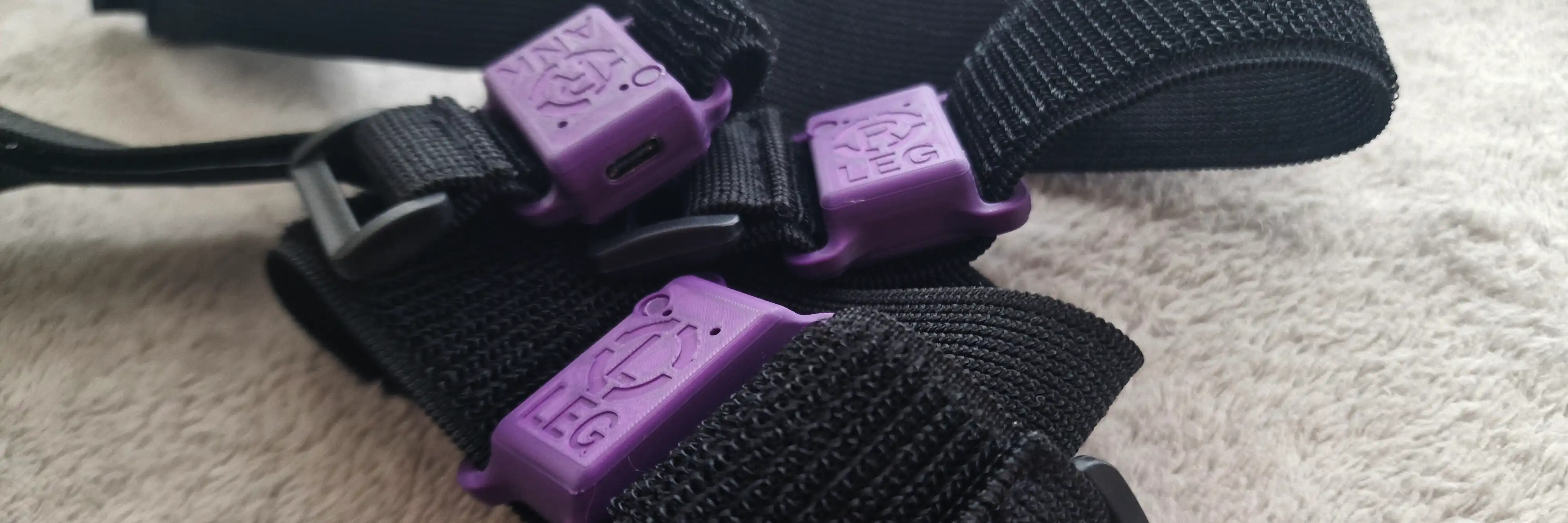

Miro Trackers | spiro.ooo | Github | ✅ |
120 mAh
401230 Battery
|
25mm/38mm | ✖️ | ✖️ |
Non Stacked Community Builds
The Ibis Chrysalis case is listed as non-stacked, as it requires the "Chrysalis" shield. This makes it incompatible with other stacked cases. It is also incompatible with other stacked designs that do not use this shield.
| Image | Name | Author | Link | USB | Battery | Strap Width | Dock | Dongle |
|---|---|---|---|---|---|---|---|---|
|

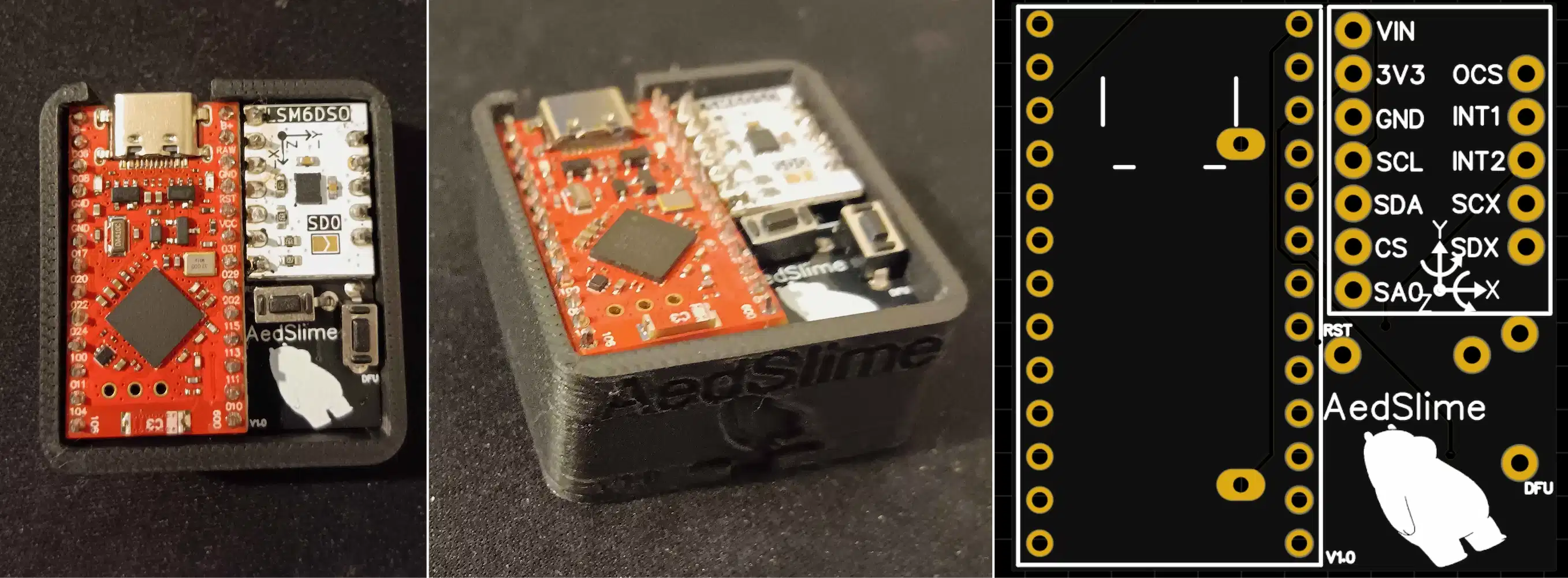

Aed-Slimes | Aed | GitHub | ✅ |
120 mAh
LIR2450 Battery
|
35 mm | ✖️ | ✖️ |
|
Marzipan | Colanns | GitHub | ✅ |
110 mAh
401230 Battery
/
170 mAh
501230 Battery
|
25 mm | ✖️ | ✖️ |
|
|
Ibis Trackers | brisfknibis | Github - Chrysalis | ✅ |
120 mAh
401230 Battery
|
30 mm | ✅ | ✖️ |
🚫 Not Recommended For New Tracker Builds
| Image | Name | Reason Not Recommended | Author | Link | USB | Battery | Strap Width | Dock | Dongle |
|---|---|---|---|---|---|---|---|---|---|
|
SlimeNRF R1/R2 | I2C only design | sctanf | GitHub | ✖️ |
300 mAh
601230 Battery
|
35 mm | ✅ | ✖️ |
|
SlimeNRF R3 | I2C only design | sctanf | Oshwlab | ✅ |
80 mAh
301230 Battery
/
100 mAh
242030 Battery
|
35 mm |
✅
Use SlimeNRF R1/R2 dock.
|
✖️ |
|
SlimeNRF-Fuimini | I2C only design | Zipra1 | GitHub | ✅ | 100 mAh | 50 mm | ✅ |
✅
Custom case for eByte E104-BT5040U Dongle.
|
Contribution
Want to contribute your design? Awesome! To have your build added to this list, please ensure the following:
- Your case must be publicly accessible (e.g. GitHub (preferable), Thingiverse, etc).
- Include at least one clear image or render of your build with a 2:1 or 3:1 aspect ratio.
- Provide basic build information:
- Does it have a USB port?
- What battery size/type does it use?
- Is it compatible with a dock? / Does it include a dock?
- Submit your case by opening a pull request.
Created by Shine Bright ✨ and Depact
